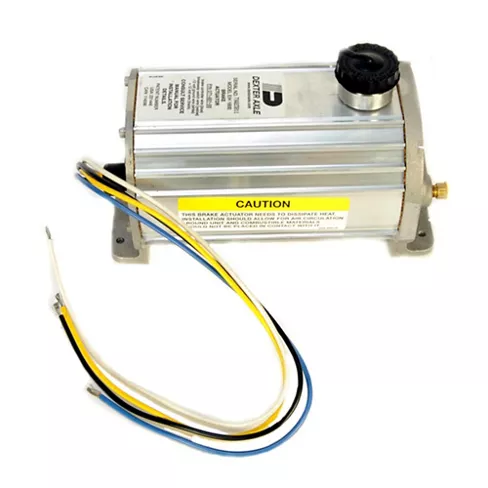

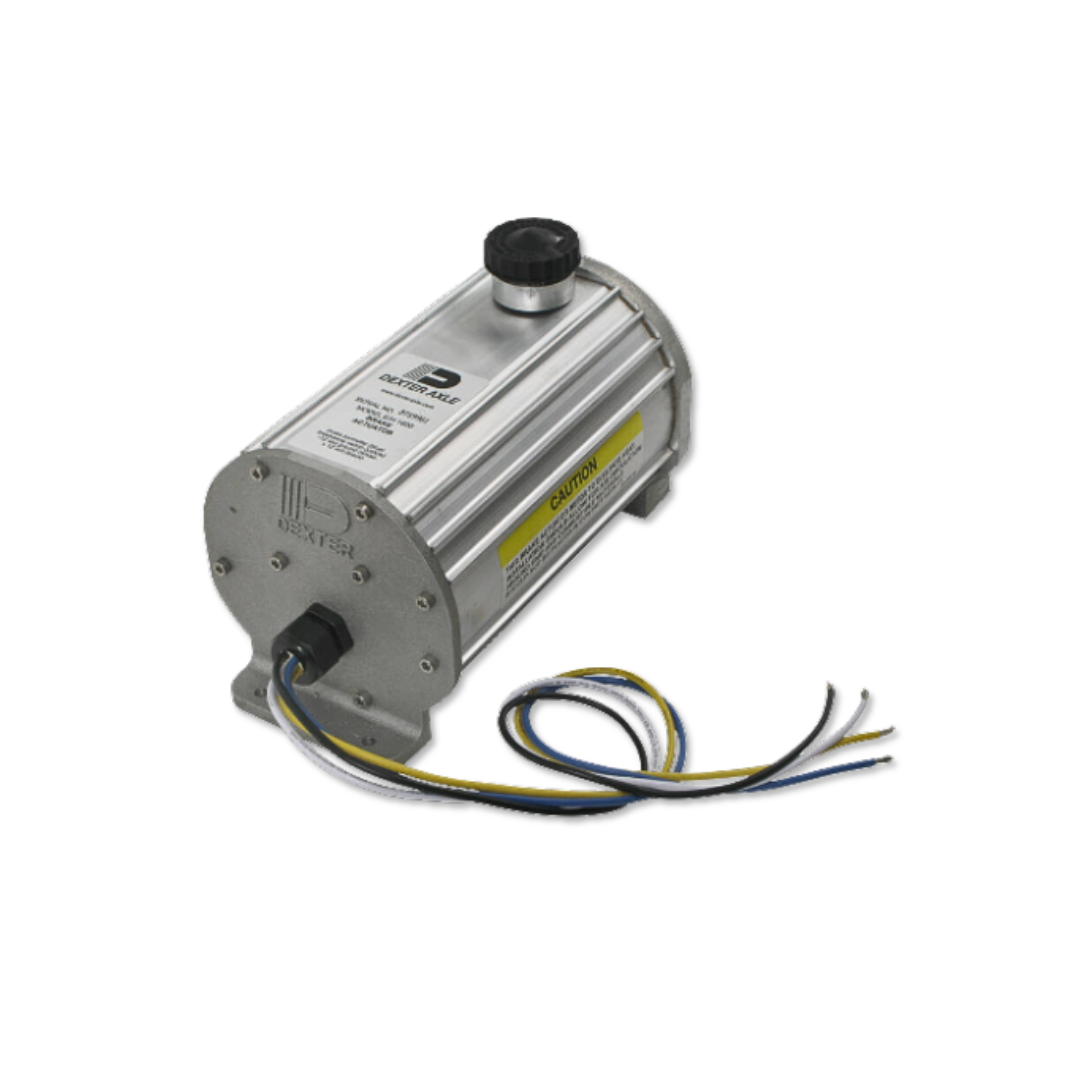

Dexter – Electric/Hydraulic Disc Brake Actuator for Trailers 1600 PSI

Product Details

Dexter Electric/Hydraulic Brake Actuator for Disc Brake Applications 1,600 psi suitable for disc brake applications. Large reservoir capacity Solid state electronics.

Requires a 4-wire hookup
Wiring connections:
Yellow: cold side of breakaway switch; the wire that goes hot when a break occurs
Black: positive connection on breakaway switch; the wire that charges the breakaway battery
Blue: output from in-cab controller; the wire that provides power from your brake controller
White: ground Requires a minimum 9 amp/hour breakaway kit

• Dimensions: 11″ long x 6″ wide x 7″ tall (bottom flange to top of cap)
• Compatible with most electronic brake controllers
• Meets or exceeds all Department of Transportation (DOT) regulations and federal braking requirements
•Works with Ford and Dodge factory brake controllers ?Not compatible with Chevrolet factory brake controllers
• 2 Year limited warranty
• The yellow wire must be attached to the breakaway unit for it to function when a breakaway occurs
