Hex Wheel Nut, 90° Cone, 5/8″-18 ID 1 1/16″ OD

Description

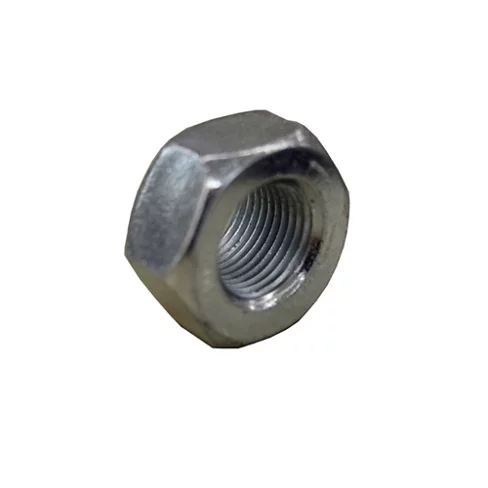

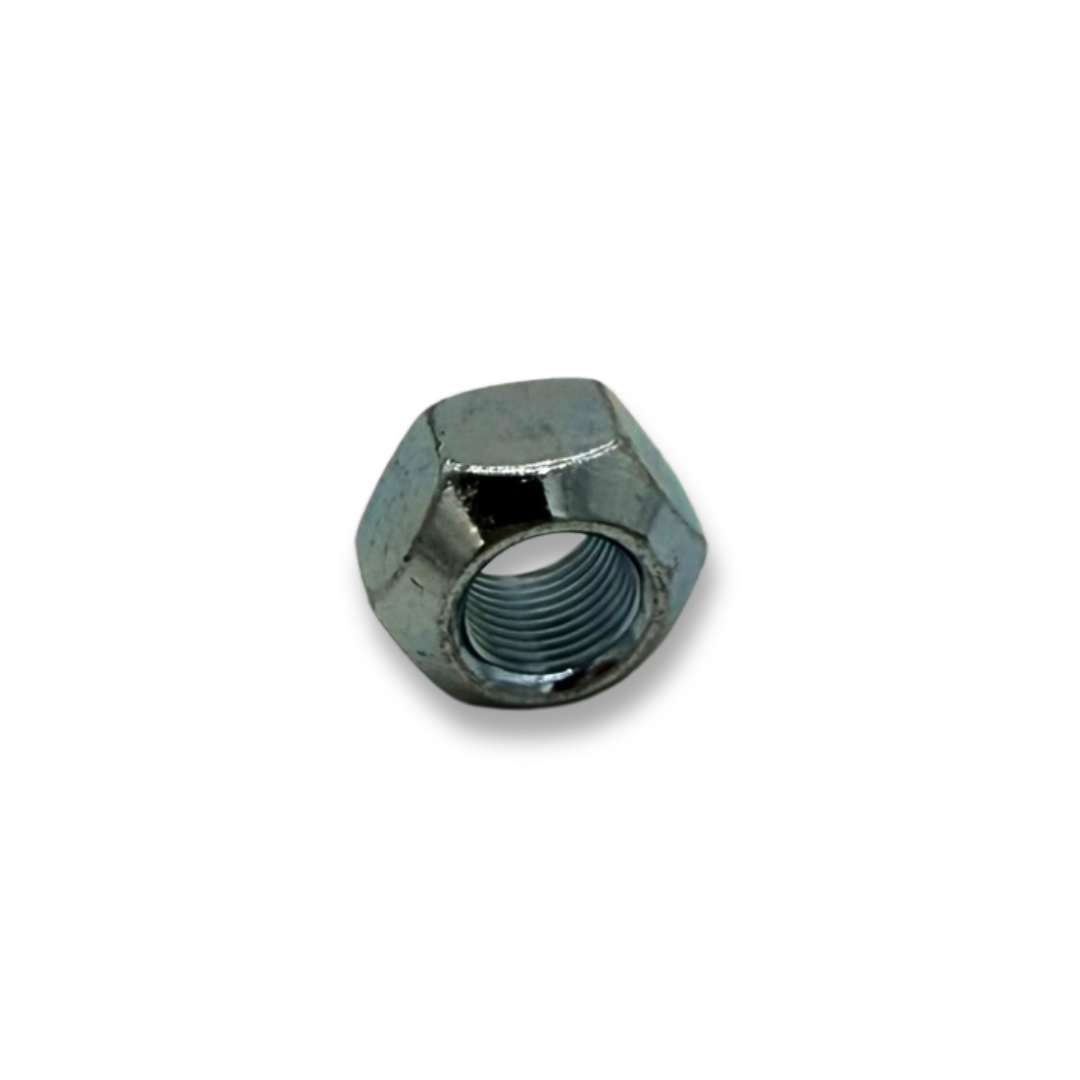

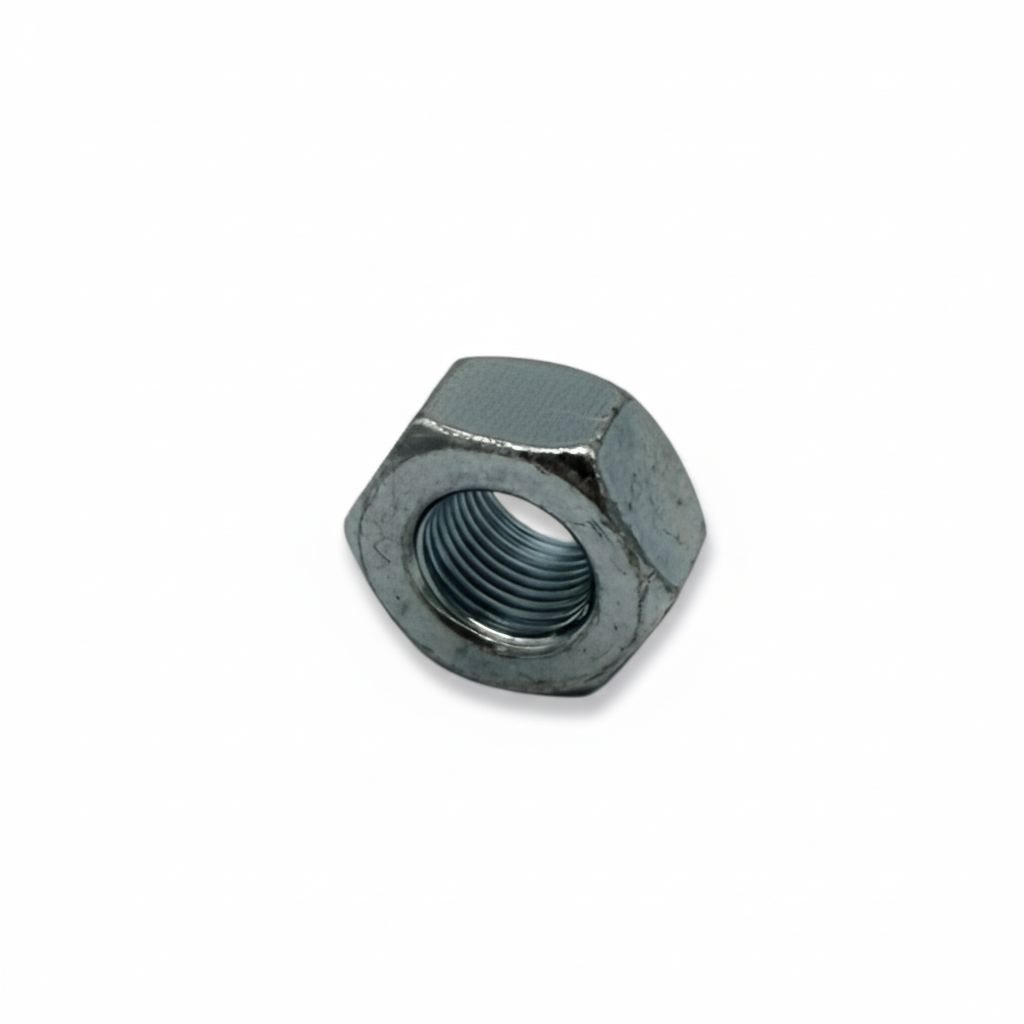

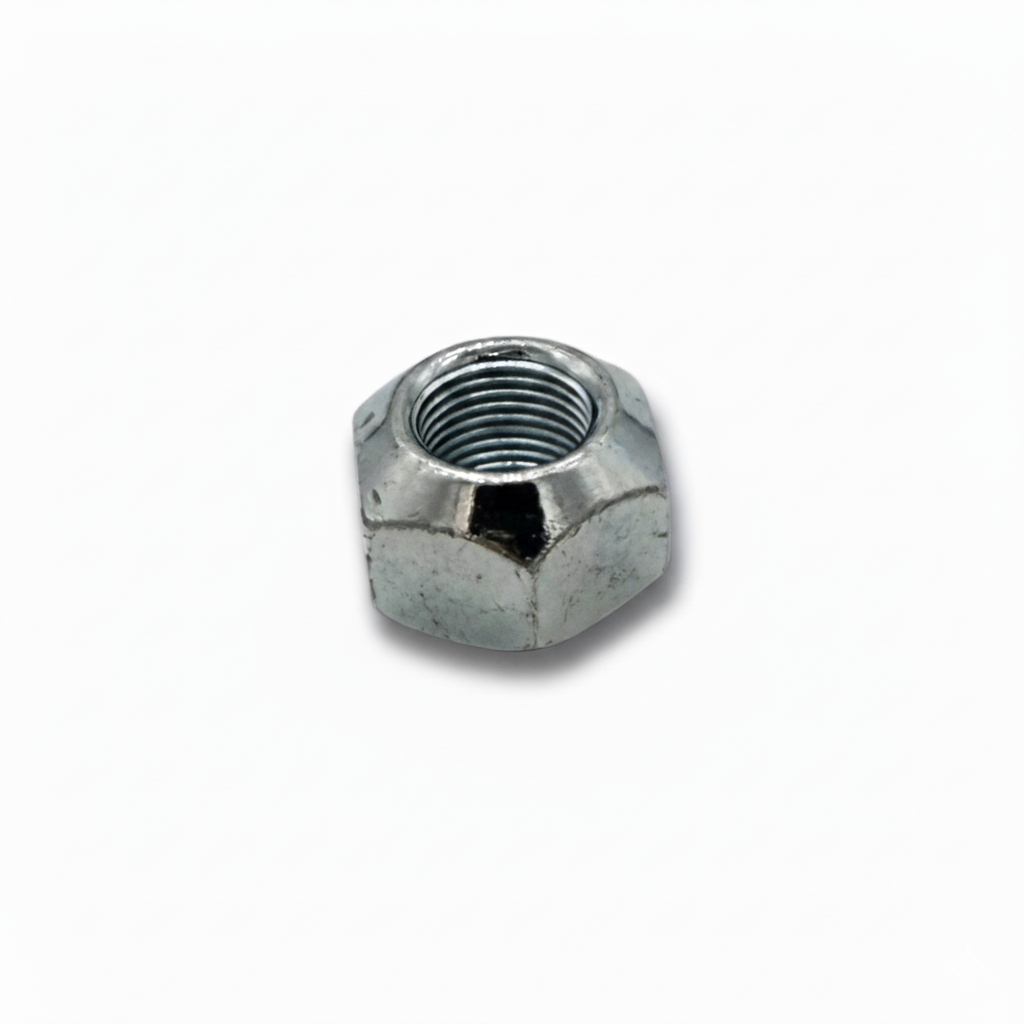

Hex Wheel Nut – 5/8″-18 Thread, 1-1/16″ OD, 90° Conical Seat, Right Hand Thread

This heavy-duty hex wheel nut is designed for secure wheel fastening in a variety of commercial, agricultural, and industrial vehicle applications. It features a 5/8″-18 right-hand thread and a 1-1/16″ outer diameter, offering a tight and precise fit for compatible wheel studs.

The nut is manufactured with a 90° conical (tapered) seat, which ensures proper centering and load distribution when used with matching tapered wheel holes. This design helps reduce the risk of loosening under vibration and stress during operation.

Important Note: This wheel nut is not intended for use with flat-faced wheels unless a wheel retaining ring (part #33-52-1) is installed. Using it without the ring on flat wheels may result in improper seating and unsafe fastening conditions.

Built from high-strength steel and machined for consistent performance, this wheel nut is a reliable choice for demanding environments where safety and durability are critical.

5/8″-18 Hex coned style wheel nut.

• 5/8″-18
• 1-1/16″ OD
• 90° Coned
• Not for use with flat faced wheels unless a wheel retaining ring is used (33-52-1)
